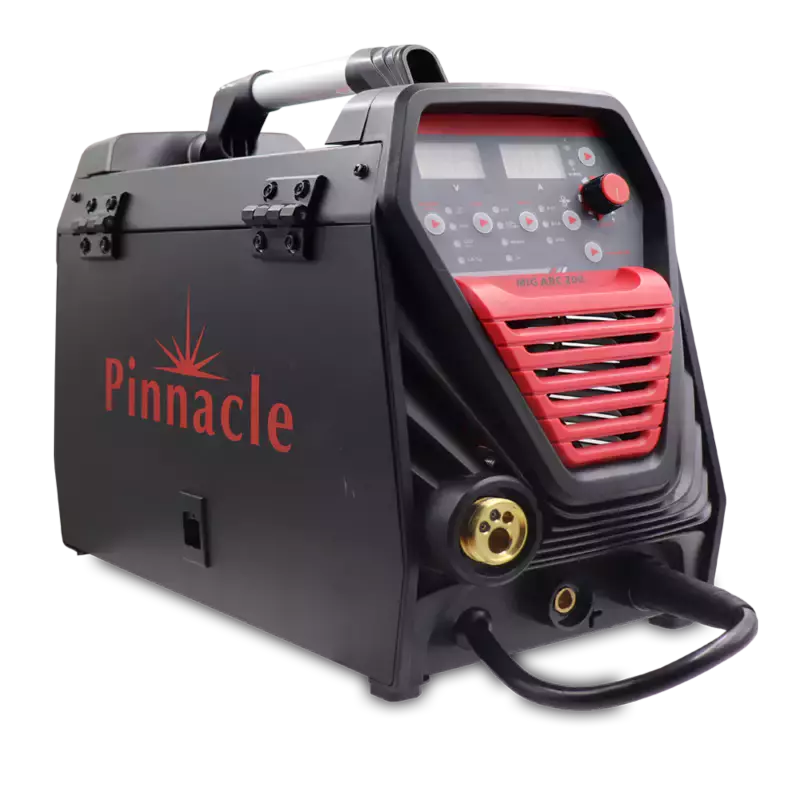

Pinnacle MIGARC 200 MIG/MMA Welding Machine
200Amp 220V
Digital
MIG Inverter Welder
Gasless MIG
MMA(ARC)
6-1001191
NAD0.01
Product Details
Specifications
Product Details
Product Details
Pinnacle MIGARC 200 MIG/MMA Welding Machine. Whether you’re a hobbyist, DIY enthusiast, or professional welder, the Pinnacle MIGARC 200 is a reliable and versatile MIG/MMA welding machine that delivers consistent results and offers ease of use. It’s a great choice for various welding applications and can be an excellent addition to your welding equipment lineup.
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Specifications
Specifications
Welding Machines
- Input Power Voltage (V)AC 230V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- Rated Input Power Capacity (KVA) MIG6KVA
- Rated Input Power Capacity (KVA) MMA5.4KVA
- Rated Input Power Capacity (KVA) TIG3.3KVA
- Rated Input Current (A) MIG27A
- Rated Input Current (A) MMA24.5A
- Rated Input Current (A) TIG15A
- No-Load Voltage (V) (VRD-off)52V
- Output Current Range (A) MIG20-200A
- Output Current Range (A) MMA20-160A
- Output Current Range (A) TIG20-160A
- Duty Cycle (%)60% @ 40`C
- Welding Wire Size (mm) MIG0.6-1.0mm
- Welding Electrode Size (mm) MMA2.5-3.2mm
- Welding Electrode Size (mm) TIG1.6-2.0mm
- Weight (KG)13kg
- Dimensions (mm)525 x 380 x 380mm
