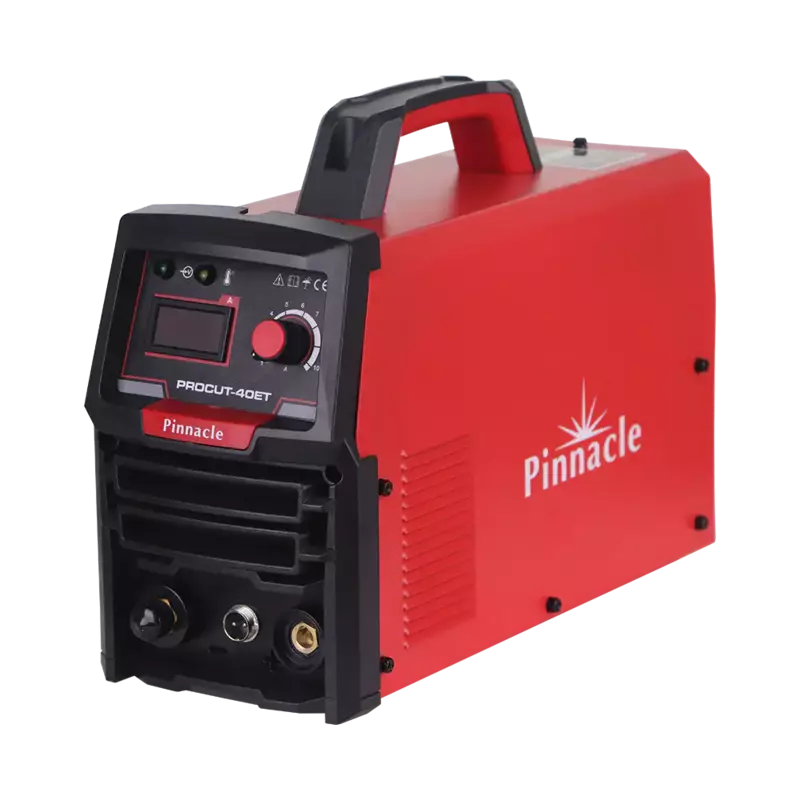

Pinnacle PROCUT 40ET Plasma Cutter
Pinnacle ProCUT 40ET Plasma Cutter
IGBT Plasma Cutter
High frequency ARC start
Recommended cutting thickness 8-15mm
Ultra-wide input voltage 160v-260V
Common steel plate, stainless steel, low alloy steel
6-PROC01
NAD0.01
Product Details
Specifications
Product Details
Product Details
Engineered for precision and power, this 40 Amp plasma cutting machine cuts metal up to a max of 15mm thick with ease and accuracy. Suitable for professionals and hobbyists, its innovative features and user-friendly interface streamline workflows, ensuring efficient project completion.
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek

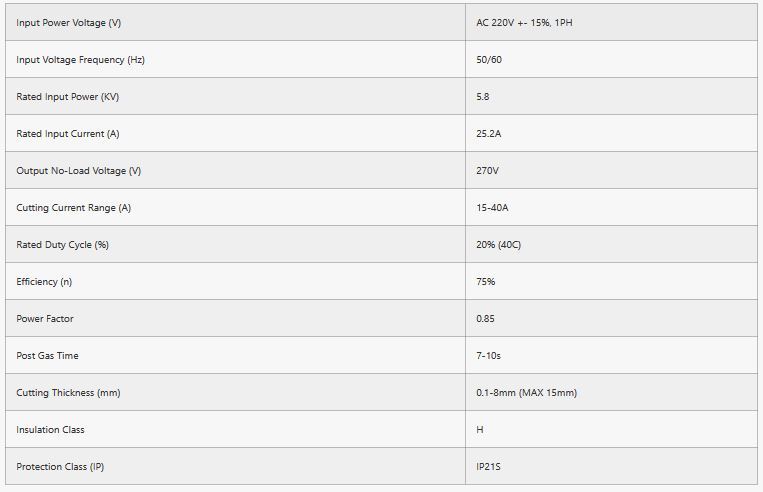

Specifications
Specifications
Plasma Cutters
- Input Power Voltage (V)AC 220V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- Rated Input Power (KV)5.8Kv
- Rated Input Current (A)25.2A
- Output No-Load Voltage (V)270V
- Cutting Current Range (A)15-40A
- Rated Duty Cycle (%)20% (40C)
- Efficiency (n)75%
- Power Factor0.85
- Post Gas Time7-10s
- Cutting Thickness (mm)0.1-8mm (MAX 15mm)
- Insulation ClassH
- Protection Class (IP)IP21S
