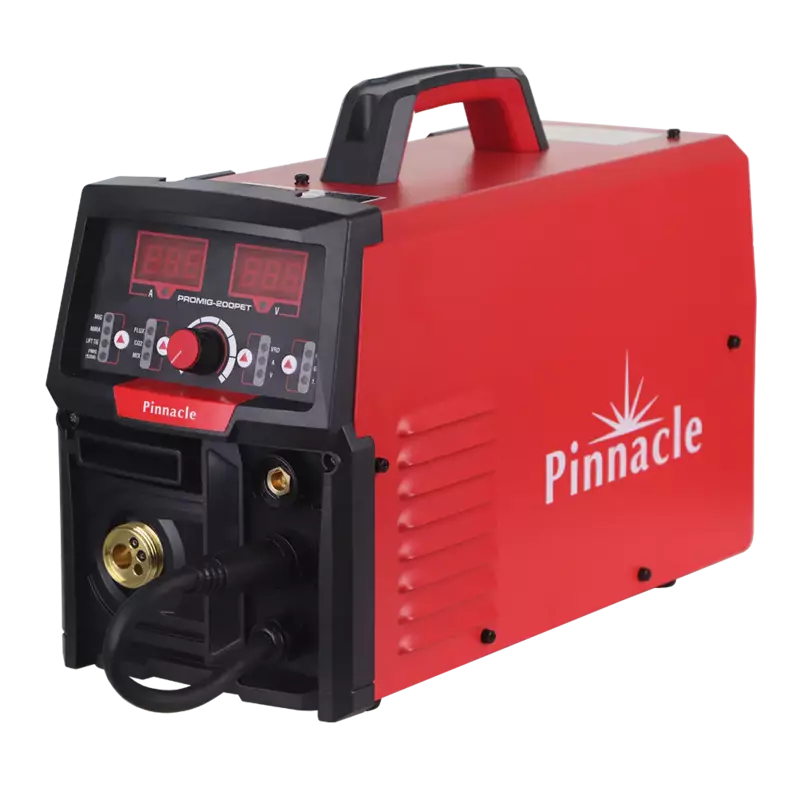

Pinnacle PROMIG 200PET MIG Welding Machine
IGBT Module Technology
Good effective welding with less spatter, suitable for thin plate welding
Available for 0.6/0.8/1.0mm 1-5kg Flux Cored and solids welding wire
Sigle pulse available for 1.0mm 1-5kg AL-Mg Welding wire
MMA available for 1-5mm welding electrodes
230V AC – 200Amp
6-PROM01
The Pinnacle PROMIG 200PET MIG Welding Machine offers versatile capabilities with MIG, MMA, and LIFT TIG welding options, powered by IGBT Module Technology. It operates at 200Amp with 230V, making it suitable for thin plate welding and supporting single pulse functionality for 1.0mm 1-5kg AL-Ng wire. This machine is designed to deliver consistent performance and is ideal for a variety of welding applications.
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Welding Machines

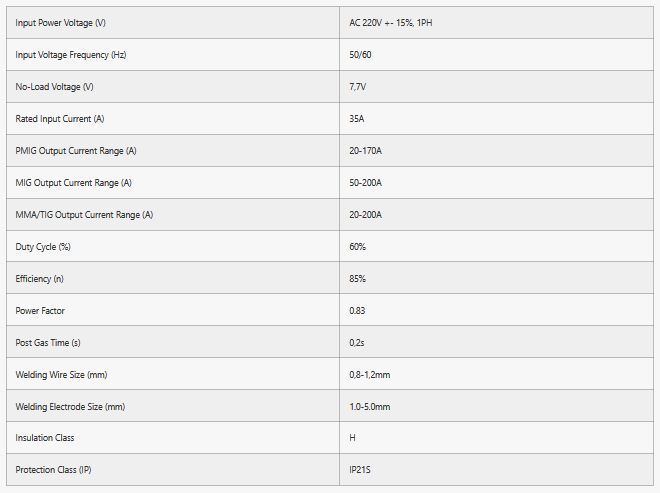

- Input Power Voltage (V)AC 220V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- No-Load Voltage (V)7.7V
- Rated Input Current (A)35A
- PMIG Output Current Range (A)20-170A
- MIG Output Current Range (A)50-200A
- MMA/TIG Output Current Range (A)20-200A
- Duty Cycle (%)60%
- Efficiency (n)85%
- Power Factor0.83
- Post Gas Time (s)0.2s
- Welding Wire Size (mm)0.8-1.2mm
- Welding Electrode Size (mm)1-5mm
- Insulation ClassH
- Protection Class (IP)IP21S
