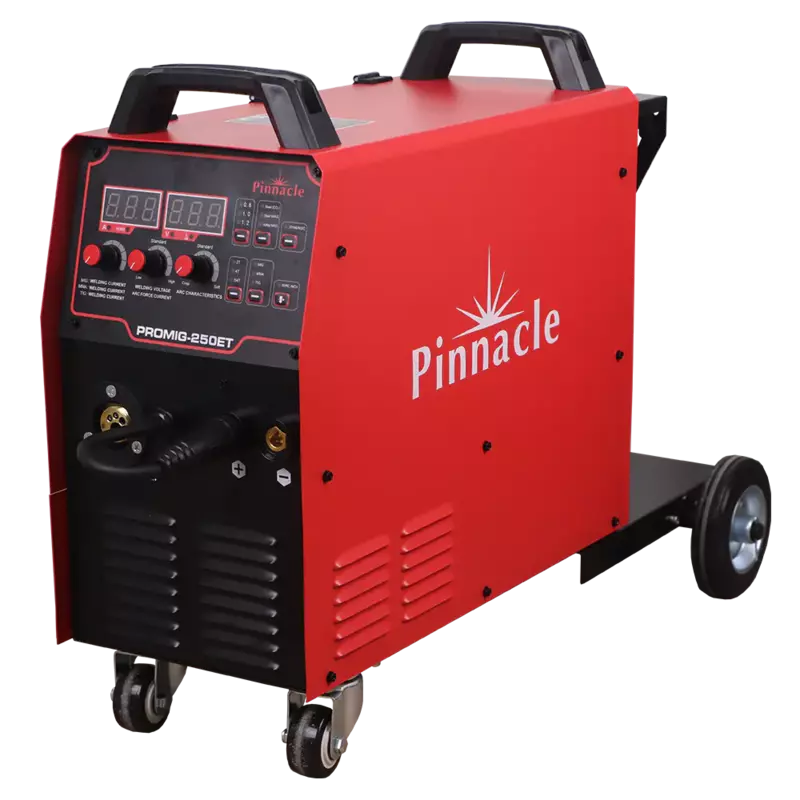

Pinnacle PROMIG 250ET MIG Welding Machine
IGBT Module Technology
Synergic Operation
2T/4T/S4T wire feeding
Wire Dimension selection
15kg Welding Wire load.
220V AC – 250Amp
6-PROM01A
Discover the ultimate in welding versatility with the Pinnacle ProMIG 250ET Welding Machine. Equipped with advanced IGBT Module Technology, it seamlessly handles MIG, MMA, and LIFT TIG welding processes. Experience Synergic Operation for precise control and efficiency, along with 2T/4T/S4T wire feeding modes for customized operations. With a robust 220v 250Amp capability and a generous 15kg Wire Spool Welding load, this machine empowers you to weld with power and precision. Upgrade your workshop with the Pinnacle ProMIG 250ET and unleash your welding potential.
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Welding Machines

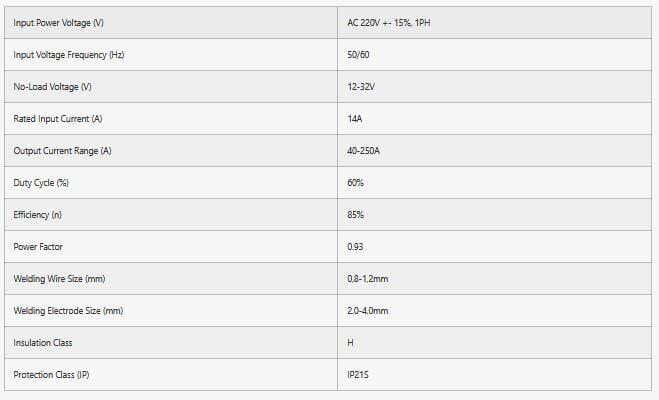

- Input Power Voltage (V)AC 220V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- No-Load Voltage (V)12-32V
- Rated Input Current (A)14A
- Output Current Range (A)40-250A
- Duty Cycle (%)60%
- Efficiency (n)85%
- Power Factor0.93
- Welding Wire Size (mm)0.8-1.2mm
- Welding Electrode Size (mm)2.0-4.0mm
- Insulation ClassH
- Protection Class (IP)IP21S
