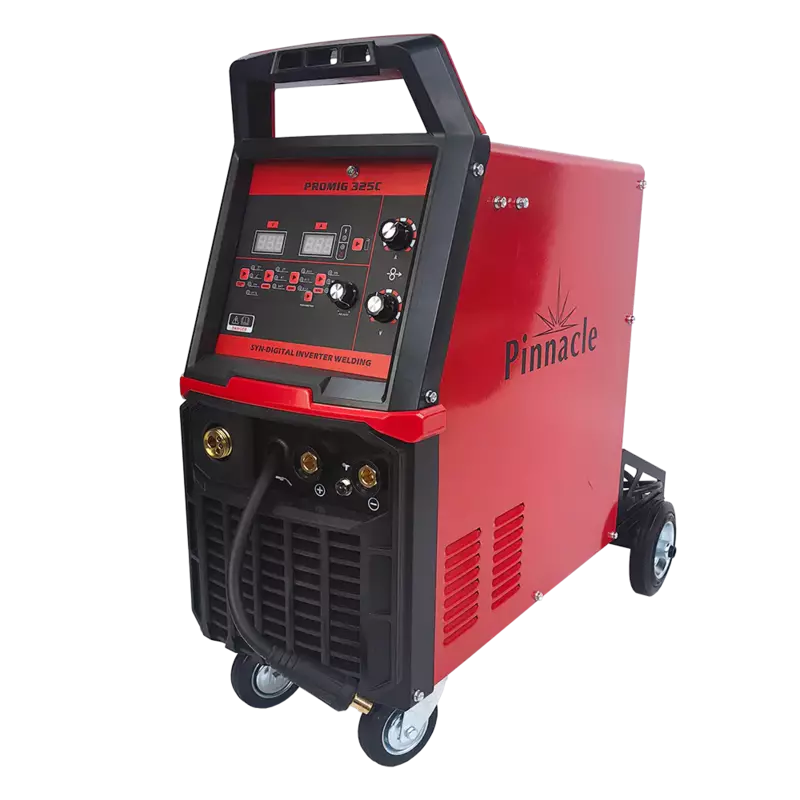

Pinnacle PROMIG 325C MIG Welding Machine
Syn-Digital inverter welding technology
VRD & 2T/4T/S4T wire feeding
Effective welding with less spatter
Fully digital control.
Hot Start, Anti-Stick, and Arc Force built-in
Over-current, over-heat, low voltage, and fault protection.
6-PROM021
The Pinnacle ProMIG 325C Welding Machine. Engineered for excellence, it effortlessly handles MIG and MMA welding with precision, thanks to its Syn-Digital inverter welding Technology. Experience the power, features like VRD and 2T/4T/S4T wire feeding modes for enhanced flexibility and control. Featuring a fully digital control system, Hot Start, Anti-Stick, and Arc Force Built-in functionalities, this machine ensures superior welding performance. With a robust 380v 300Amp capacity, the ProMIG 325C is your go-to choice for professional-grade welding.
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Welding Machines

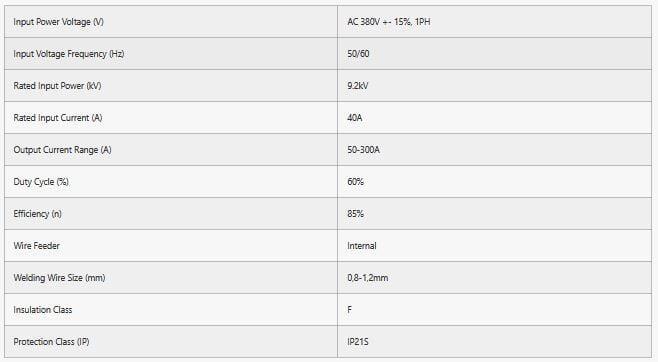

- Input Power Voltage (V)AC 380V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- Rated Input Power (kV)9.2kV
- Rated Input Current (A)40A
- Output Current Range (A)50-300A
- Duty Cycle (%)60%
- Efficiency (n)85%
- Wire FeederInternal
- Welding Wire Size (mm)0.8-1.2mm
- Insulation ClassF
- Protection Class (IP)IP21S
