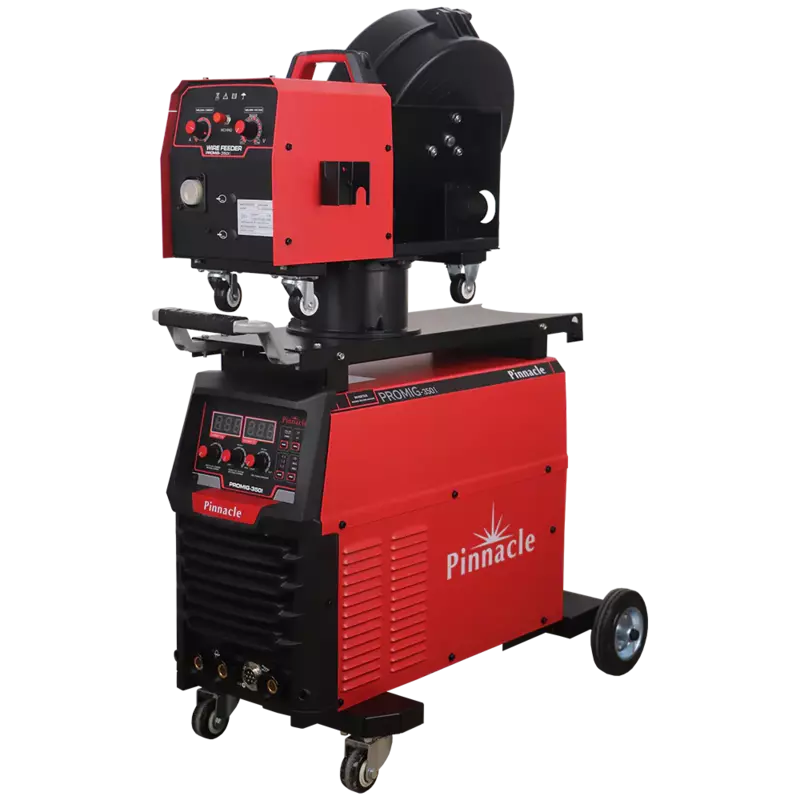

Pinnacle PROMIG 350I MIG Welding Machine
IGBT Full Bridge Module Technology
High-speed welding for an almost no-spatter weld
Precise waveform control using (UWC algorithm)
Fully digital control system.
Friendly man-machine interface
Automatic welding port (support robots)
6-PROM03
Experience the pinnacle of welding excellence with the Pinnacle PROMIG 350I Welding Machine. Utilizing advanced IGBT Full Bridge Module Technology, it delivers high-speed welding with minimal spatter, ensuring impeccable welds every time. Benefit from precise waveform control powered by the UWC algorithm and enjoy seamless operation through its fully digital control system and user-friendly man-machine interface. Designed to support automation with an automatic welding port, including robot integration capabilities, the PROMIG 350I is the ultimate choice for professionals seeking superior welding performance and efficiency. Upgrade your welding experience with Pinnacle’s cutting-edge technology and achieve precision and reliability in every weld.
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Welding Machines
- Input Power Voltage (V)AC 380V +- 15% 1PH
- Input Voltage Frequency (Hz)50/60Hz
- Rated Input Power (kV)14kV
- Rated Input Current (A)23A
- Output Current Range (A)40-350A
- Rated Duty Cycle (%)350A/31.5V – 100%
- Efficiency (n)85%
- No Load Voltage (V)70V
- Welding Wire Size (mm)0.8-1.2mm
- Gas Flow (L/min)15 ~ 20L/min
- Insulation ClassH
- Protection Class (IP)IP21S
