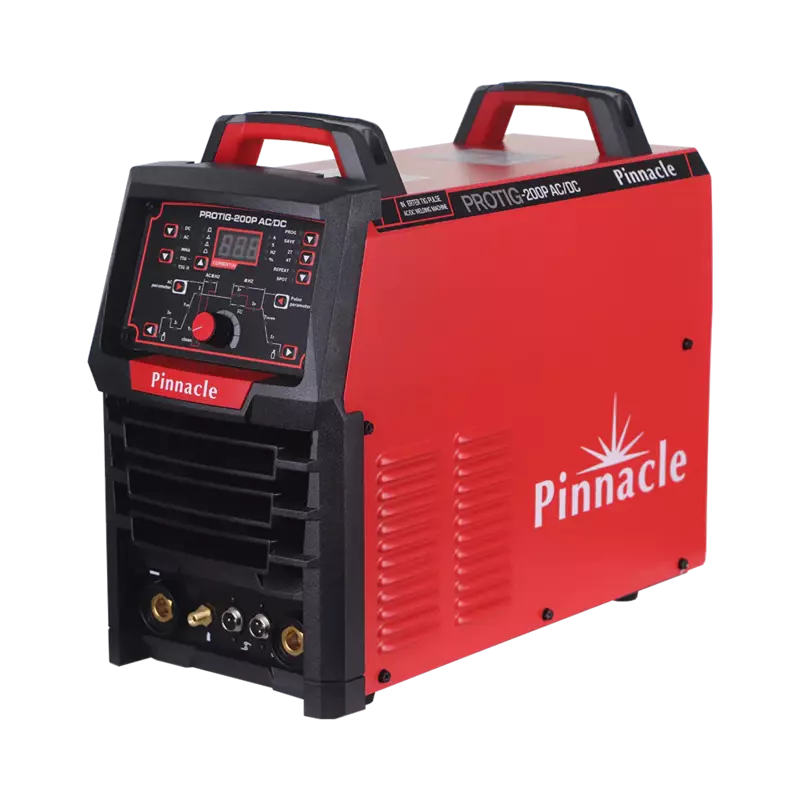

Pinnacle ProTIG 200P AC/DC Pulse TIG Welding Machine
220V +- 15%, PH1 – 200Amp
AC/DC Pulse TIG / MMA Welding Machine
Hot Start, ARC Force & Anti-Sticking build-in
Over current, Over heat, Under Voltage protection
Professional parameter adjustable
Could be equipped with optional foot pedal
6-PROT02
The Pinnacle ProTIG 200P AC/DC Pulse TIG Welding Machine is designed to make welding easier and more efficient. Powered by advanced IGBT Module Technology, it offers precise control with full pulse features and cleaning settings. Whether you need TIG or MMA welding, this machine delivers exceptional performance. It’s packed with safety features like over-current, overheat, and under-voltage protection, and includes VRD and 2T/4T functions for added convenience. Plus, it’s compatible with a foot pedal for even more control. Perfect for professionals who value reliability and versatility!
Price on Request
Prices exclude VAT
Delivery Fees are subject to the supplier you order from
Additional transport charges might apply for towns outside of Windhoek
Welding Machines

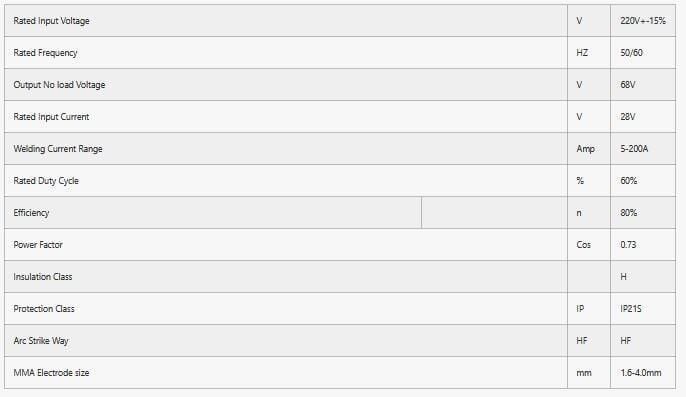

- Rated Input Voltage220V+-15%
- Rated Frequency50/60Hz
- Output No load Voltage68V
- Rated Input Current28V
- Welding Current Range5-200A
- Rated Duty Cycle60%
- Efficiency80%
- Power Factor0.73
- Insulation ClassH
- Protection ClassIP21S
- Arc Strike WayHF
- MMA Electrode size1.6-4.0mm
